Codecasa 34 (1999)

Notas de la instrumentación

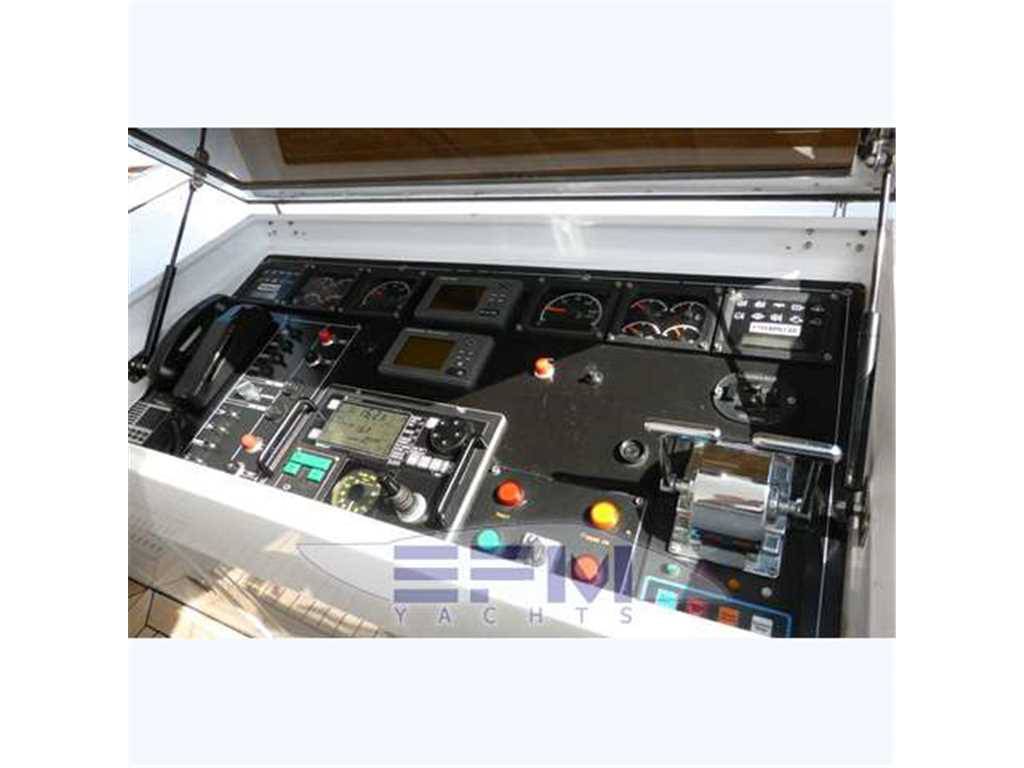

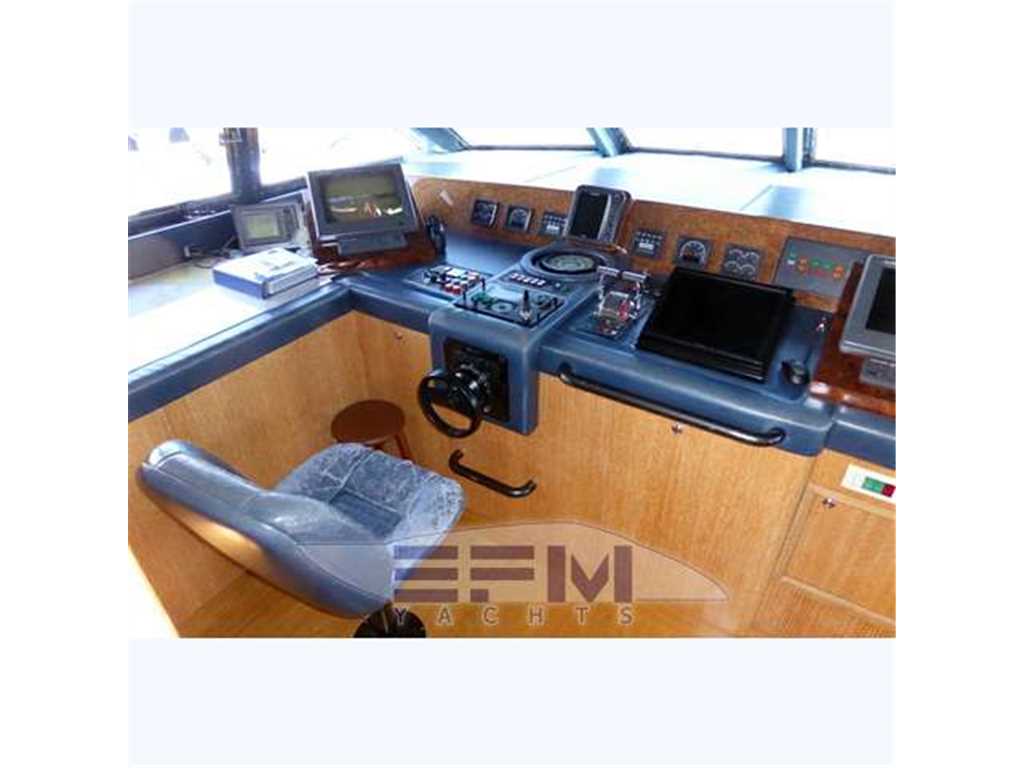

Full Electronic instrument and navigation system by FURUNO:

- Furuno Navigator GP150
- 2 Radar Furuno Arpa 72 nm
- Furuno WAAS Navigator GP32
- Navtex Furuno NX 300
- Automatic pilot FURUNO Navipilot
- Video plotter Furuno
- Echosounder Furuno FCV 585
- Gyro Compass SPERRY
- VHF DSC Sailor RT 5022
- VHF GARMIN GMDSS
- VHF Skanti TRP 7000 -
- Telefono Radio Sailor 3622B
- Antenna GPS Furuno
- 2 Generator Kohler 50 kw
- Bow thruster 50kw
- Fridge 2 Frigit 600+200
- 2 Vosper stabilizers
- Alfa Laval System
- Hamman System
- 2 Watermakers Tecnicomar
- Internet broadband WiFi connection
- 2 Antenna TV SAT
- A7V system crestron

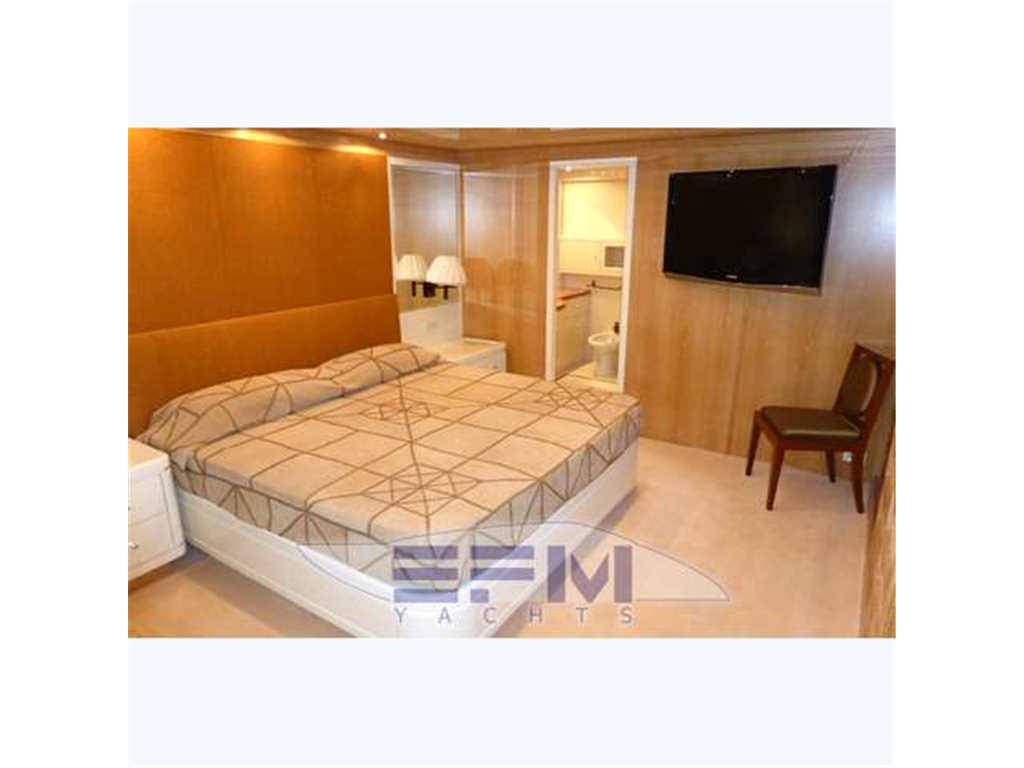

- Samsung TV LCD in each cabin


-Hull material High Tensile Steel
-Hull Semi-displacement
-Shipyard Cantieri Codecasadue
-Refit. Year 2005/2006
-Major Refit Cantieri Lusben Year 2007/2008

Notas de armamento

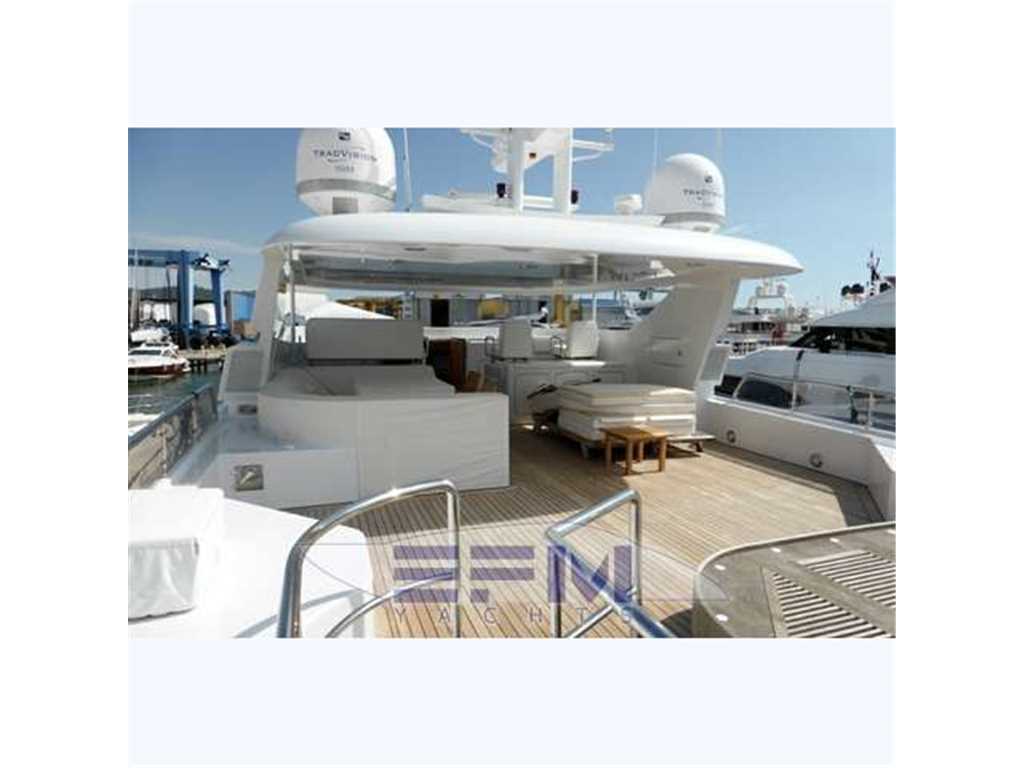

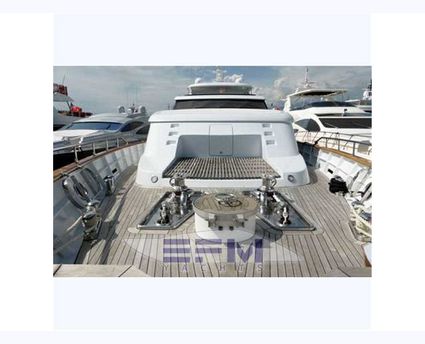

DECK EQUIPMENT

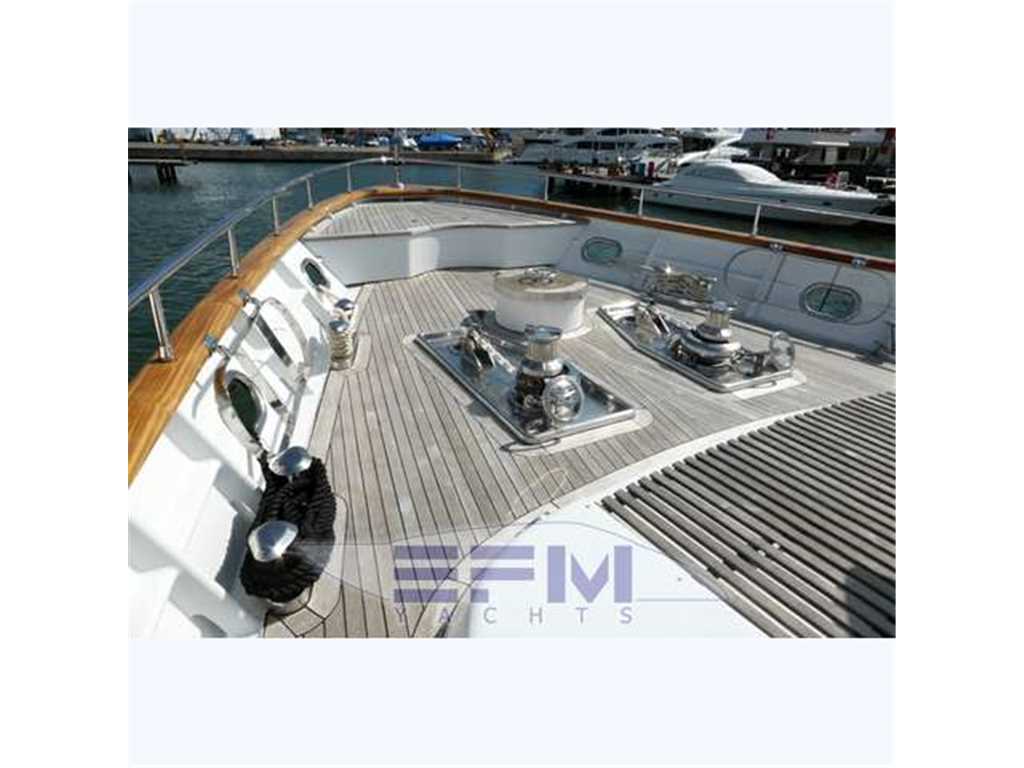

2 MAXWELL VWC 6000 vertical electric anchor windlasses.
250 metres hot galvanized anchor chain 14 mm., grade U2.
2 polished stainless steel HY-HHP/POOL anchors, 125 Kilos each.
2 MAXWELL VC 3000 electric capstans on aft deck.

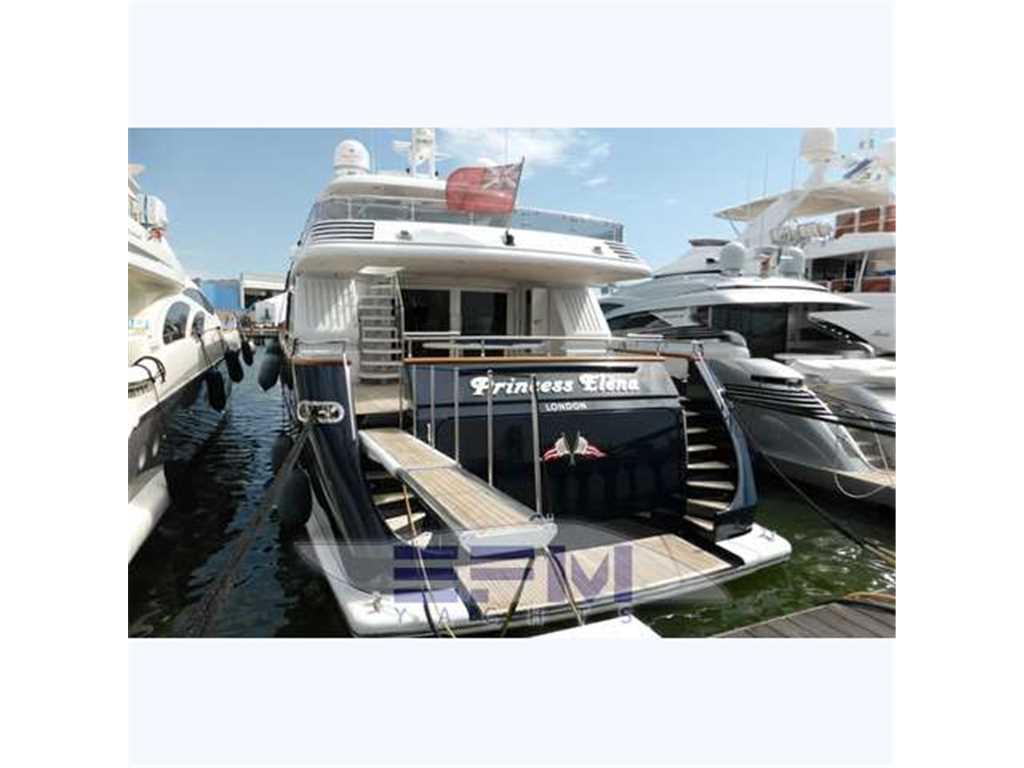

1 SANGUINETI electro/hydraulic retractable stern gangway.
1 SANGUINETI electro/hydraulic retractable swimming ladder.
Fenders.
Life buoys.
ZODIAC Self inflatable Life rafts.
Covers for deck equipment.
TENDERS
1 ZODIAC 4.50 mt tender + Yamaha 4T 9.9 hp
1 ZODIAC 8.00 mt tender
ELECTRIC SYSTEM
Modern marine electric system in accordance with the American Bureau of Shipping rules.
Ships voltage 380/220 Volts, 3 phase, 50 HZ.
Lighting system 220 Volts, AC.
Paralleling system for both generators.
Navigation lights in accordance with the international rules.
2 x 50KW KOHLER generators.
SANITARY SYSTEM
JETS Vacuum system for toilets.
HAMANN Super Mini sewage treatment system in compliance with IMO requirements.
AIR CONDITIONING – VENTILATION
Centralized air treatment for lower deck rooms.
Centralized air extraction for bathrooms.
Marine air conditioning system, fan coil type of ample capacity serving Owner’s, guests’ and crew areas.
Mechanical ventilation for engine room, garage and galley.

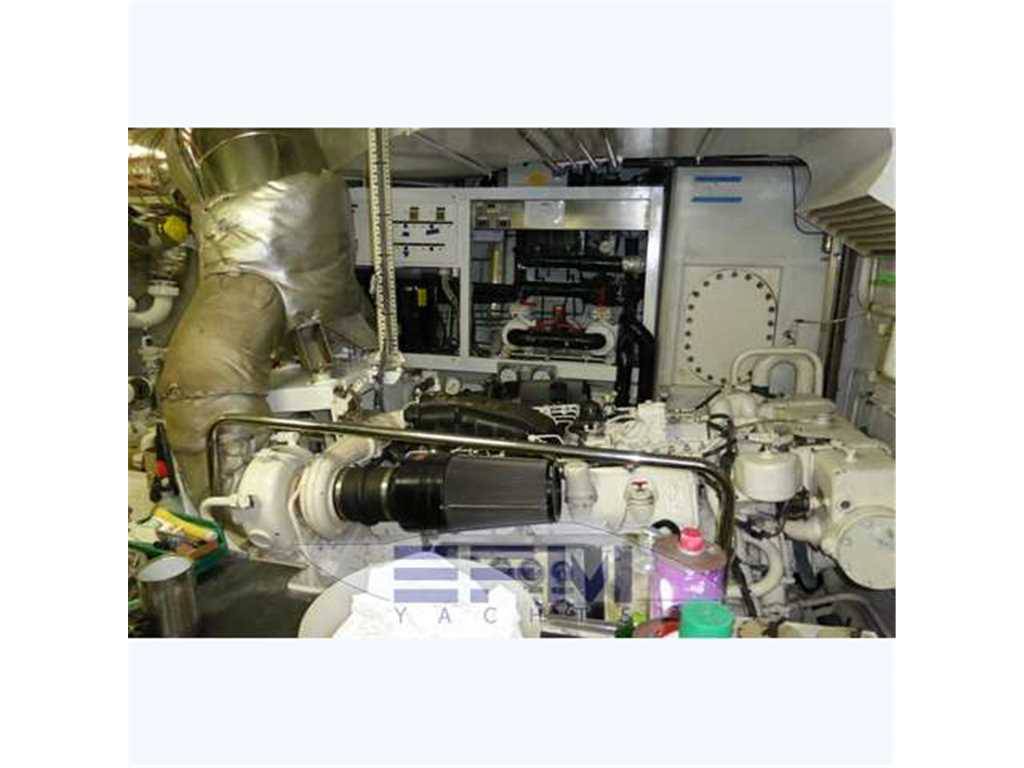

MACHINERY AND SYSTEMS
1 x 50 HP AMERICAN BOW THRUSTER, electrically driven.
2 x 50 Kw. KOHLER 40 EFOZ diesel generators with sound insulating covers.
Starting Gel batteries for main engines and diesel generators.
Electric fans for engine room ventilation.
Fire extinguishing system according to the rules.
Complete piping system for bilge, fire fighting, fuel oil, sanitary plant etc..

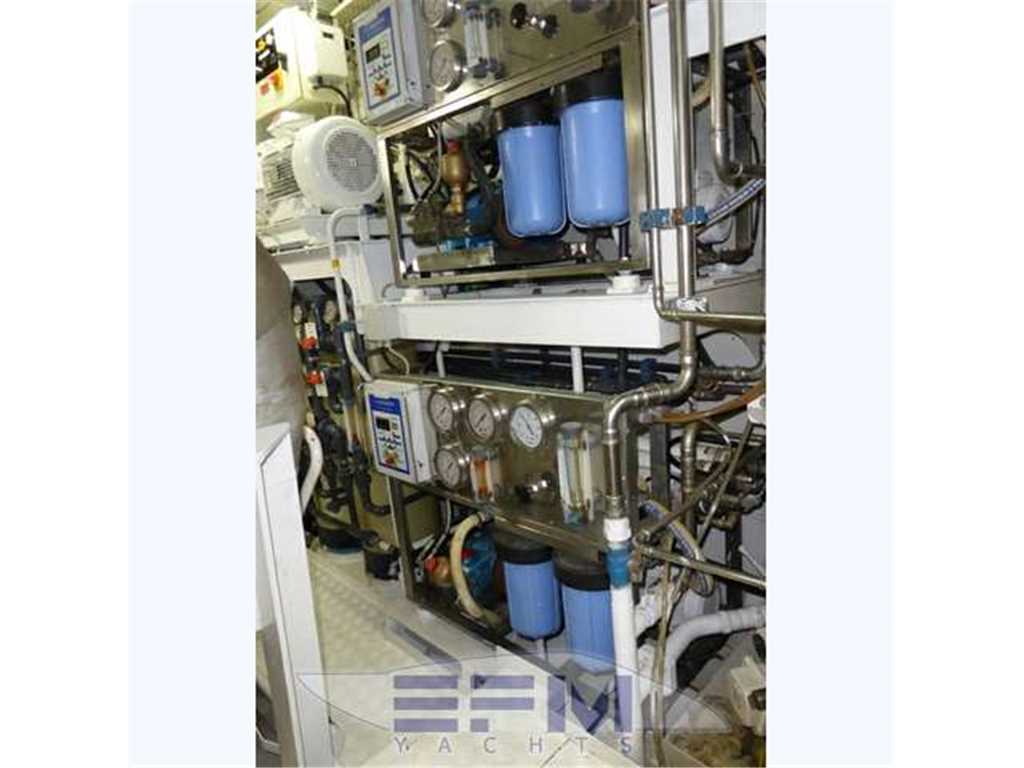

2 water makers, 4.000 litres/day each.
MISCELLANEOUS EQUIPMENT
Sundry control/alarm monitoring system.
Fire and smoke alarm system.
Fire hoses with nozzles.
Fridge in guests hall
Fridge (LIEBHERR) with icemaker (ICERETTE) and wine cellar (LIEBHERR)
Galley equipment (MIELE/ AEG/ GAGGENAU/ ALPES INOX).
MIELE PROFESSIONAL dish washer
1 MIELE washer and 1 MIELE dryer
PAINTING
All the products used for painting the vessel will be suitable for a yacht of this type and the finishing will correspond to the high CODECASA standard.
CATHODIC PROTECTION
Sacrifical zinc anodes with high purity grade will be positioned along the bottom, in the bow thruster tunnel and in the sea chests.
