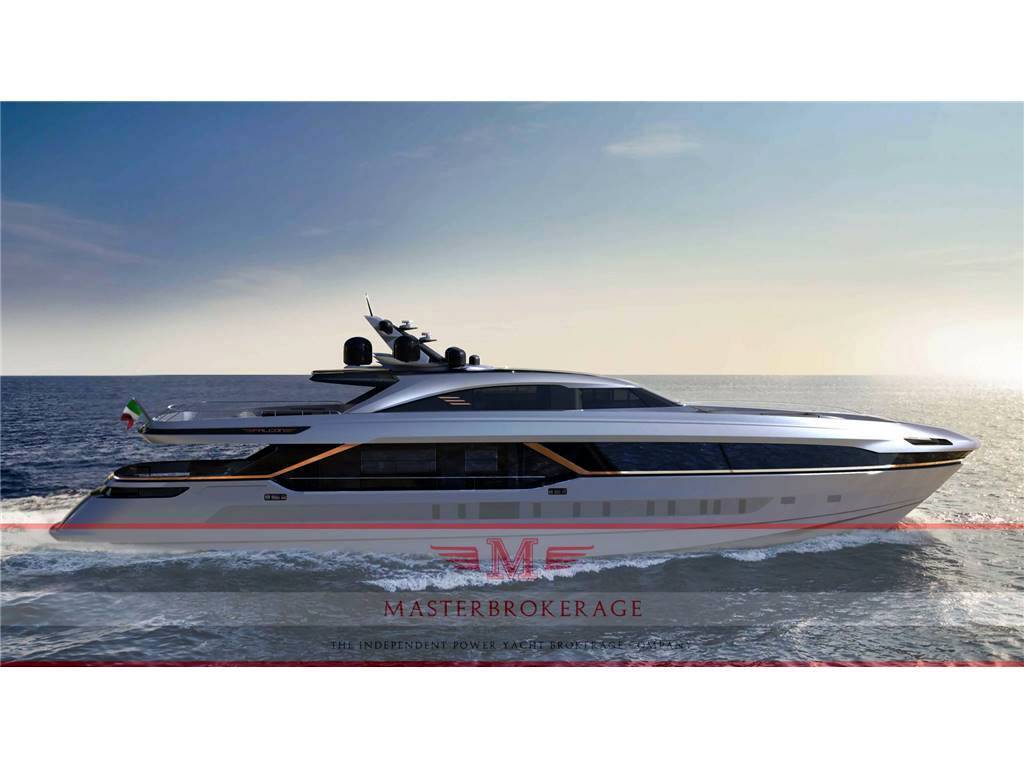

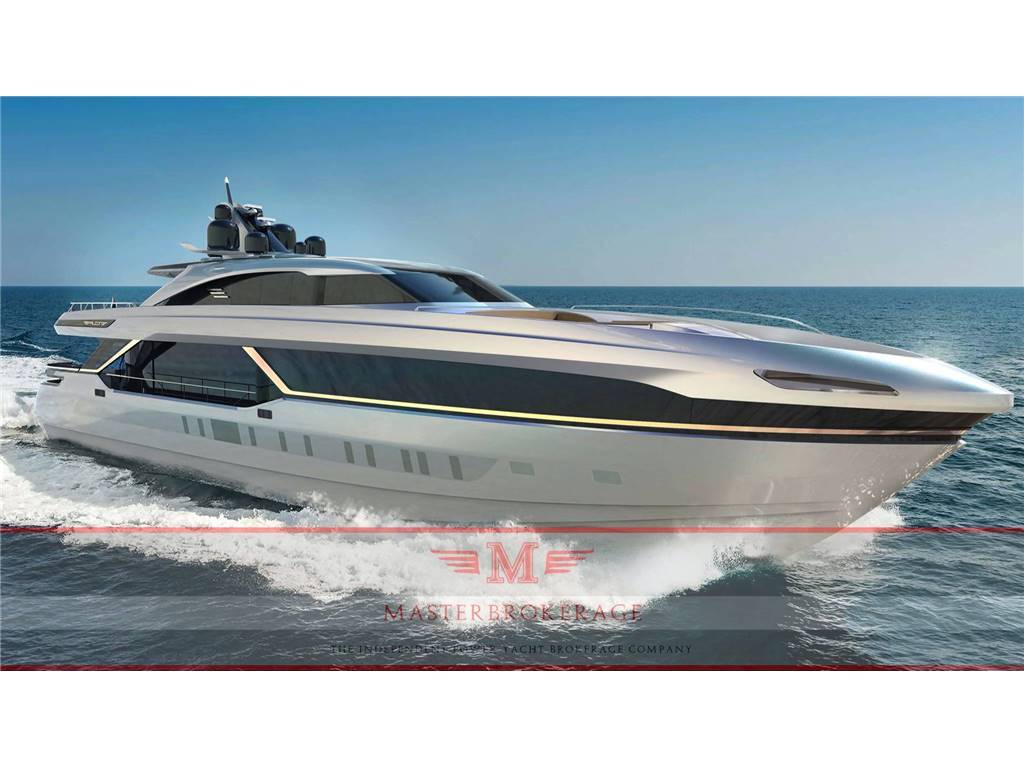

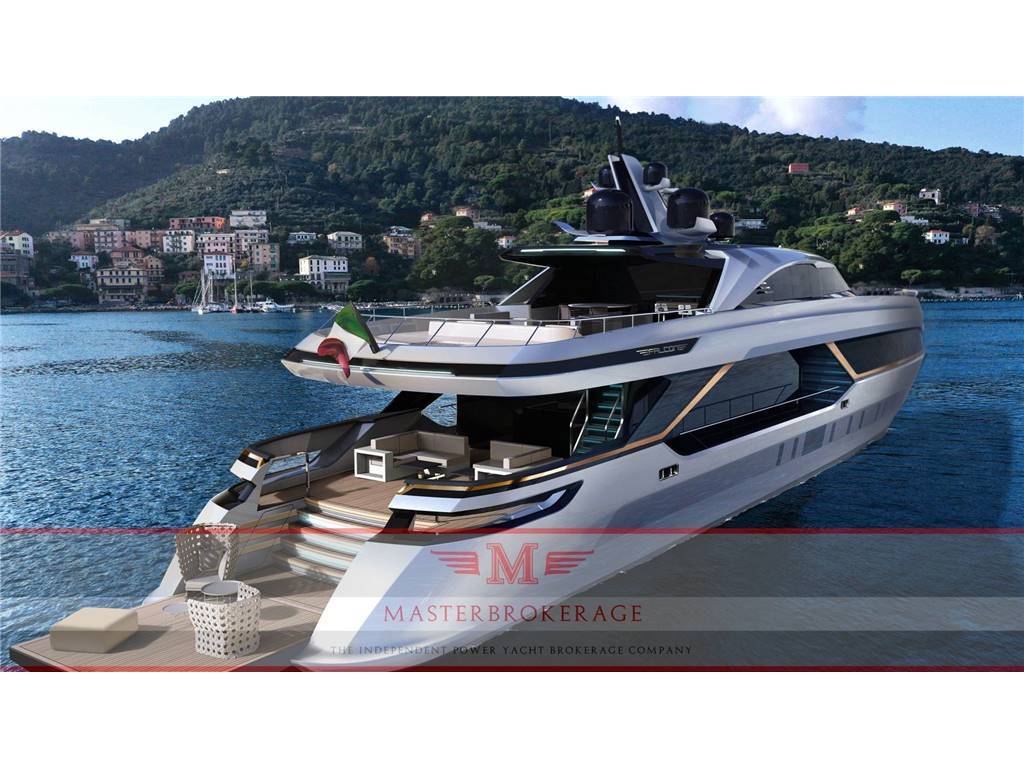

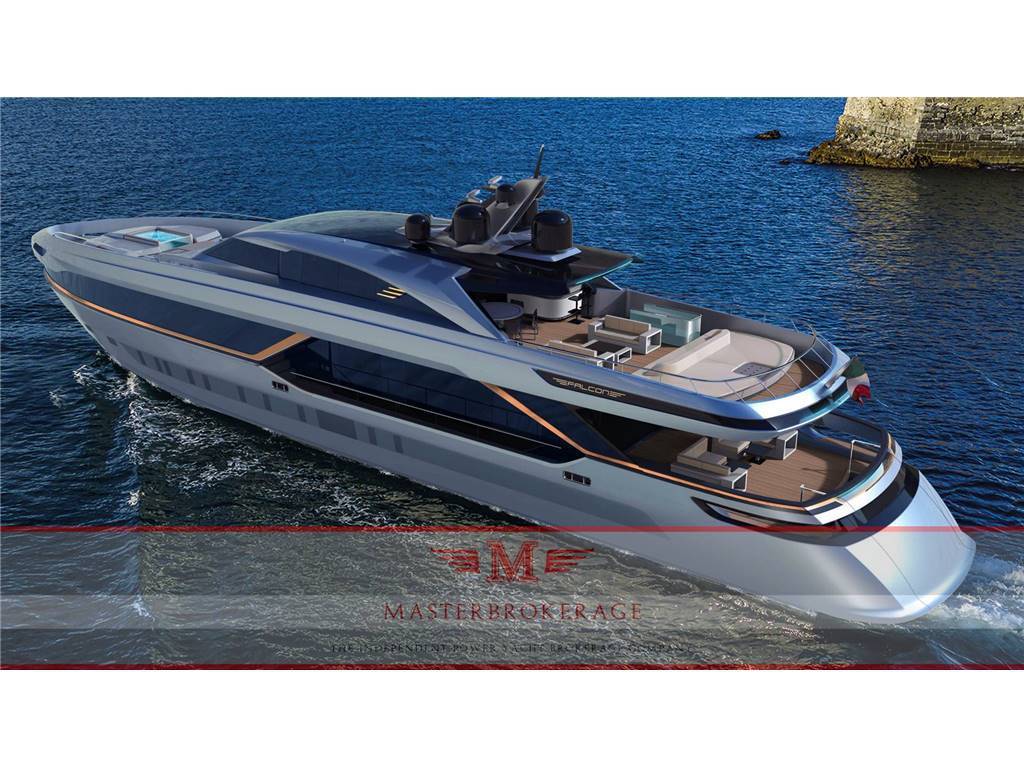

Falcon Legacy 40 metri
cód. IDO: 625265 - Ficha: FLY00263.94510
| Astillero/Modelo | Falcon Legacy 40 metri | ||
| Categoría | Nuevo barco Motor | ||
| Tipología | Fly | ||
| Nr. construcción | 02 | ||
| Eslora | 40.00 mts | ||
| Ancho | 8.30 mts | ||
| Max Velocidad | 27.0 nudos | ||
| Velocidad Crucero | 22.0 nudos | ||
| Precio |
21 000 000 Euro
| ||
|
|
|||
Combustibles y motores
| Nº motores | 2 |
| Potencia | 2600 HP |
| Combustible | Diesel |
| Marca | MTU |
| Modelo | 16V2000 M96L |
| Transmisión | no indicado |
| Horas movimiento | No indicado |
| No tanques | 1 |
| Capacidad | 25000 litros (5505.00 galónes) |
Materiales
| Casco | ALUMINIUM ALLOY |
| Cubierta | No indicado |
| Casa de Cubierta | ALUMINIUM ALLOY |
Hidráulicos
| Tanques | 1 |
| Capacidad | 4000 litros (880.80 galónes) |
| Material | No indicado |
| Desalinizador | Sí |
| Caldera | Sí |
| Cocheporras | Sí |
Eléctricos
| Tensión | No indicada |
| Carga baterías | Sí |
| Invertitor | Sí |
| Nr. Baterías | No indicado |
| Capacidad | No indicada |
| Gen. 220 | Sí 2x75 KW KOHLER |
| Potencia | 150.0 Kw |
Fotografias            |
Notas internasGUEST CABINS: 1 Owner’s suite + 2 VIPs +2 Guest cabins CREW CABINS: 1 Captain + 2 twin crew HOUSEHOLD APPLIANCES MAIN SALON • 2 wine cooler • 1 Ice-maker GALLEY MAIN DECK • 4 fridge/freezers; • 1 oven; • 1 cooking top; • 1 Grill; • 1 Dishwasher; • 1 Ice-maker • 1 Hood AFT DECK • 1 fridge UPPER DECK (AFT AREA) • 2 fridge • 1 Ice-maker • 1 Dishwasher • 1 grill CREW MESS LOWER DECK • 1 mirco-wave • One fridge • 1 dishwasher CREW LAUNDRY LOWER DECK • 1 washing machine professional • 1 dryer machine professional PANTRY MAIN DECK • 1 fridge • 1 icemaker • 1 wine cooler MASTER SUITE • 1 fridge GUEST CABINS • Each (4) one fridge Notas de la instrumentaciónNAVIGATION SYSTEMSWHEELHOUSE • N.5 Monitor Hatteland 24” touch screen • FURUNO NAVNET TZT2 Black Box with chart data megawide mm3 e remote controller MCU-004 • Hub Navnet TZT: Ethernet hub Furuno 101 with converter SD-50B-12 • Professional navigation PC & Maxsea timezero professional • Radar #1: FURUNO DRS25A-NXT UHD Solid state • Radar #2: FURUNO X BAND FAR2228BB (Wheelmark) • N.2 GPS/Heading sensor: NMEA 2000 SCX-20 • NMEA 2000 Junction box • Network Sounder #1: DFF3D Multibeam • Transducer #1: Multibeam B54 Thru-Hull Bronze • Network Sounder #2: BBDS1 • Transducer #2: B744VL Bronzo • Autopilot: Simrad AP70 MK2 IMO Pack analog with remote unit FU-80 helm seat • Wind weather sensor AIRMAR 220WX • Furuno AIS Transponder • Navtex receiver NX7008 (Wheelmark) • BNWAS System (Wheelmark) • Heading Sensor SC-70 (Wheelmark) • Navigation doppler speed log (Wheelmark) • Main VHF Furuno FM8900S (GMDSS) + Antenne • EPIRB Safesea pro cat1 GPS auto • VHF Safesea V100 (GMDSS) • SART Safesea S100 CREW MESS/ DINETTE • Furuno Navnet TZT3 16” • VHF Remote handset HS-4800 with speaker SP-4800 ENGINE CONTROL ROOM • 1 x Monitor hatteland HD 15T21MMD 15” CCTV43222222 • 1 x 9003 substation for headset engine room • 1 x 9001 indoor unit STEERING GEAR ROOM • 1 X RF14XU FEEDBACK AUTOPILOT • 1 X COMPASS REPETER RD-50 • 1 x 9003 - SUBSTATION FOR HEADSET WING STATIONS • 1 X FURUNO FI-70 MULTIFUNCTIONS DISPLAY DATA REPEATER • 2 X SIMRAD VHF HS 35 WIRELESS • 1 X 13” Touchscreen Monitor for CCTV control/Display CCTV EQUIPMENT • 9 X CCTV AXIS camera PTZ P5514-E (1 X Arch, 1 X Flybridge, 3 X External Main Deck, 2 X Engine Room, 1 X Garage, 1 X Beach Area) NETWORKING • 1 X NETGEAR GSM7248P 48 PORT POE • 1 X NETGEAR GS748T 48 PORT • 1 X NETGEAR WC7600 Wireless Controller • 12 X A.P. NETGEAR WAC720 • 1 X PEPLINK MAX-HD4-LTE E T • 2 X BANTEN WI-FI ANTENNA 02188 VOICE COMMUNICATION • 1 X PANASONIC KX-NS500NE • 2 X IP PHONES PANASONIC KD-DT543NE (WHEELHOUSE, E.C.R) • 15 X PANASONIC KX-NS0154CE DECT MULTI CELL • 18 X PANASONIC KW-TCA185CE CORDLESS PHONE SAT ANTENNA • 1 X SAT INTELLIAN TV SAT T100 STAB W • 1 X INTELLIAN VSAT V100GX 3-AXIS Notas de armamentoPROPELLERS: 2 x screw propellers, fixed pitch, 5 bladesGENERATORS: 2 x Kohler 75 kW TRANSMISSION: 2 x ZF 5350 SERIES STABILIZER: Zero speed (2x fins stab., one each side) BOW THRUSTER: 50 kW Electric 400V-50Hz approx BILGE/FIRE-FIGHTING PUMO SYSTEM • 2 x Pumps Gianneschi • 1 x Bilge Oily water tank with capacity according to tank capacities • 1 x emergency pump outside engine room AIR CONDITIONING SYSTEM The air conditioning is tropical system, Condaria or equivalent chiller unit. DECK EQUIPMENT - BOW • 4 mooring bollards in SAE316L • 2 Fairleads with rollers in SAE316L • 2 Electric Windlasses 5500W each, with local controller from wheelhouse and remote control • Anchor pocket in SAE316L • High resistance anchor chains with chain counter, length 110m, two of ø 16, • Two high holding power anchors 160kg each - SIDES • 4 Mooring bollards in SAE316L • 4 Fairleads in SAE316L - STERN • 4 Mooring bollards in SAE316L • 2 Fairleads in SAE316L • 2 Aft capstans of 4000W TENDER AND JET SKI - Tender • Floodable Garage door on starboard side suitable for a 6,20 m tender - Jet ski • Bow garage with travel lift • 2 Jet ski Sea Doo RXP-X |
Notas adicionales
| TANKS CAPACITIES (liters, approximate) Fresh water: 4.000 Fuel: 25.000 Bilge tank: 500 Sludge tank: 400 Black water: 1.000 Grey water: 3.000 Clean oil: 400 Dirty oil: 300 Over Flow Tank: 500 MAIN DECK HI-FI • 1 X TV UHD 55’’ SAMSUNG UE55KS7000 • 2 X SUB FOCAL 1000F • 6 X FOCAL IW 1003 Be SPEAKERS • 1 X A/V RECEIVER DENON AVR-X4300H • 1 X PLEX CLIENT A/V MEDIA PLAYER VOD • 1 X APPLE TV 4GEN 32GB • 1 X APPLE IPAD AIR 2 • 1 X SATELLITE DECODER • 4 X FOCAL IW 1003 Be SPEAKERS • 1 X TV UHD 55’ SAMSUNG UE55KS7000 • 6 X JAMES QX620M • 1 X JAMES 1000 PTM • 1 X PLEX CLIENT A/V MEDIA PLAYER VOD • 1 X APPLE TV 4GEN 32GB • 1 X APPLE IPAD MINI 4 16 gb • 1 X SATELLITE DECODER BEACH AREA HI-FI • 4 X JAMES QX520M • 2 X JAMES QX1010M WOOFER • 1 X APPLE AIRPORT EXPRESS • 1 X SONOS AUDIO CLIENT CONNECT • 1 X APPLE IPAD MINI 4 16 gb OWNER’S SUITE MAIN DACK HI-FI • 1 X TV UHD 55’’ SAMSUNG UE55KS7000 • 1 X SUB FOCAL 300P • 5 X JM LAB IW 1002 SPEAKERS • 1 X A/V RECEIVER DENON AVR 43OOH • 1 X PLEX CLIENT A/V MEDIA PLAYER VOD • 1 X APPLE TV 4GEN 32GB • 1 X APPLE IPAD AIR 2 • 1 X SATELLITE DECODER OWNER’S BATHROOM HI-FI • 2 X FOCAL IC 706 VST SPEAKERS • 2 X CRESTON TSW-560 5’’ IN WALL TOUCH SCREEN CABIN LOWER DECK FORE PORT GUEST CABIN • 1 X TV 32’’ SAMSUNG UE32K55OO • 2 X JM LAB IW 706 SPEAKERS • 1 X PLEX CLIENT A/V MEDIA PLAYER VOD • 1 X APPLE TV 32GB • 1 X APPLE IPAD MINI 16 GB • 1 X SATELLITE DECODER FORE STARBOARD GUEST CABIN • 1 X TV 32’’ SAMSUNG UE32K55OO • 2 X JM LAB IW 706 SPEAKERS • 1 X PLEX CLIENT A/V MEDIA PLAYER VOD • 1 X APPLE TV 32GB • 1 X APPLE IPAD MINI 16 GB • 1 X SATELLITE DECODER AFT PORT VIP CABIN • 1 X TV UHD 55’’ SAMSUNG UE55KU6400 • 4 X JM LAB IW 706 SPEAKERS • 1 X PLEX CLIENT A/V MEDIA PLAYER VOD • 1 X APPLE TV 32GB • 1 X APPLE IPAD MINI 16 GB • 1 X SATELLITE DECODER AFT PORT STARBOARD VIP CABIN • 1 X TV UHD 55’’ SAMSUNG UE55KU6400 • 4 X JM LAB IW 706 SPEAKERS • 1 X PLEX CLIENT A/V MEDIA PLAYER VOD • 1 X APPLE TV 32GB • 1 X APPLE IPAD MINI • 1 X SATELLITE DECODER MAIN DECK AFT DECK • 1 X TV UHD 55’’ SAMSUNG UE55KS7000 • 6 X JAMES QX620M • 1 X JAMES 1000 PTM • 1 X PLEX CLIENT A/V MEDIA PLAYER VOD • 1 X APPLE TV 32GB • 1 X APPLE IPAD MINI • 1 X SATELLITE DECODER FORE UPPER-DECK • 1 X TV UHD 55’’ SAMSUNG UE55KS7000 • 6 X JAMES QX520M • 2 X JAMES 43 OWM SPEAKERS • 2 X JAMES 1500 PTM • 1 X PLEX CLIENT A/V MEDIA PLAYER VOD • 1 X APPLE TV 4GEN 32GB • 1 X APPLE IPAD MINI 4 16 gb OWNER’S CABIN • 1 X TV UHD 55’’ SAMSUNG UE55KS7000 • 1 X SUBFOCAL 300P • 5 X FOCAL IW 1003 Be SPEAKERS • 1 X A/V RECEIVER DENON AVR X-4300H • 1 X PLEX CLIENT A/V MEDIA PLAYER VOD • 1 X APPLE TV 32GB • 1 X APPLE IPAD AIR • 1 X SATELLITE DECODER UPPER DECK • 1 X TV UHD 55’’ SAMSUNG UE55KS7000 • 10 X JAMES QX520M • 1 X JAMES 1500 PTM • 1 X JAMES 1200 PTM • 1 X JAMES QX3LRM SOUNDBAR • 1 X PLEX CLIENT A/V MEDIA PLAYER VOD • 1 X APPLE TV 32GB • 1 X APPLE IPAD MINI 16gb • 1 X SATELLITE DECODER CREW MESS • 1 X TV LED SAMSUNG 32’’ UE32K5500 • 2 X JM LAB IW 106 SPEAKERS • 1 X PLEX CLIENT A/V MEDIA PLAYER VOD • 1 X APPLE TV 32GB • 1 X APPLE IPAD MINI 16 gb • 1 X SATELLITE DECODER CREW CABINS X 3 HI-FI • 2 X TV LED SAMSUNG 22’’ K5000 • 1 X SATELLITE DECODER DOMOTIC SYSTEM • LUTRON DIGITAL MEDIA CONTROL SYSTEM PROCESSOR • SONNEX AMPLIFIER SYSTEM • LUTRON APP INTERFACE SOFTWARE |
Datos considerados correctos, pero no contractuales. No se trata, bajo ninguna circunstancia, de un documento contractual.
